Precision Switch Double Pole

Rating
15 amps 125/250 VAC
3/4 H.P., 125 VAC—11/2 H.P., 250 VAC


SWITCH

PART#
TYPES

SUFFIX
OPERATING
FORCE
(Max. gms.)
PRETRAVEL
(Max. inches)
OPERATING
POINT
(inches)
OVERTRAVEL
(min. inches)
MOVEMENT
DIFFERENTIAL
(max. inches)
ACTUATOR
LENGTH
(Tolerance ± 0.31)
850
.050
.812 ± .030
.218
.015
—
1280
.100
.774 ± .030
.188
.015
—

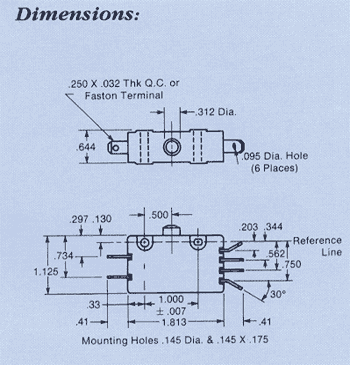

Click here to see dimensions
