Precision Switch Single Pole

Rating
15 amps 125/250 VAC
3/4 H.P., 125 VAC—11/2 H.P., 250 VAC


SWITCH

PART#
TYPES

SUFFIX
OPERATING
FORCE
(Max. gms.)
PRETRAVEL
(Max. inches)
OPERATING
POINT
(inches)
OVERTRAVEL
(min. inches)
MOVEMENT
DIFFERENTIAL
(max. inches)
ACTUATOR
LENGTH
(Tolerance ± 0.31)
425
.050
.285 ± .020
.100
.015
—
850
.100
.248± .026
.050
.015
—
425
.050
.812± .030
.218
.015
—
850
.100
.775± .030
.168
.015
—
100
.250
.312± .062
.187
.093
1.500
285
.312
.468± .062
.150
.050
.821

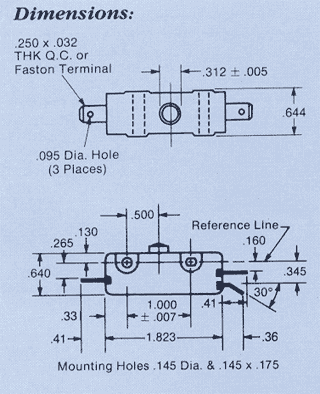

Click here to see dimensions
