Potentiometers - Multi Turn
|
Model
Number |
12HPC-10EP |
20HP-10S |
22HP-10 |
|
 |
 |
 |
|
Standard Model Nos. |
With
pin terminals for p.c. board: |
12HPC-10EP
(10-turn) |
|
Bushingmount
type: |
20HP-5S
(5-turn) |
20HP-10S
(10-turn) |
Servomount
type: |
20HP-5S
(5-turn) |
20HP-10S
(10-turn) |
|
5-turn
model: |
22HP-5E |
10-turn
model: |
22HP-10E |
|
| Standard
Resistance Range |
|
100
Ohm to 50k Ohm (5-turn) |
100
Ohm to 100k Ohm (10-turn) |
|
100
Ohm to 50k Ohm (5-turn) |
100
Ohm to 100k Ohm (10-turn) |
|
| Max.
Practical Resistance Value |
- |
100k
Ohm (5-turn) |
150k
Ohm (10-turn) |
|
- |
| Total
Resistance Tolerance |
Standard
Class ±3% (H) |
Precision
Class ±1% (F) |
|
Standard
Class ±3% (H) |
Precision
Class ±1% (F) |
|
Standard
Class ±5% (J) |
Precision
Class ±1% (F) |
|
| Independent
Linearity Tolerance |
Standard
Class ±0.25% |
Precision
Class ±0.1% |
|
| |
5-turn |
10-turn |
Standard
Class |
±0.3% |
±0.2% |
Precision
Class |
±0.2% |
±0.1% |
|
| |
5-turn |
10-turn |
Standard
Class |
±0.3% |
±0.25% |
Precision
Class |
±0.2% |
±0.1% |
(Below
5k Ohm) |
(±0.25%) |
(±0.15%) |
|
| Power
Rating |
1.5W |
1.0W
(5-turn) |
2.0W
(10-turn) |
|
1.0W
(5-turn) |
2.0W
(10-turn) |
|
| Noise |
Below
100 Ohm E.N.R. |
Below
100 Ohm E.N.R. |
- |
| Electrical
Travel |
360°
*n ±5° (n: No. of turns) |
360°
*n ±5° (n: No. of turns) |
- |
| Mechanical
Travel |
360°
*n +15° (n: No. of turns) |
or |
360°
*n +0° (n: No. of turns) |
|
360°
*n +10° (n: No. of turns) |
or |
360°
*n +0° (n: No. of turns) |
|
- |

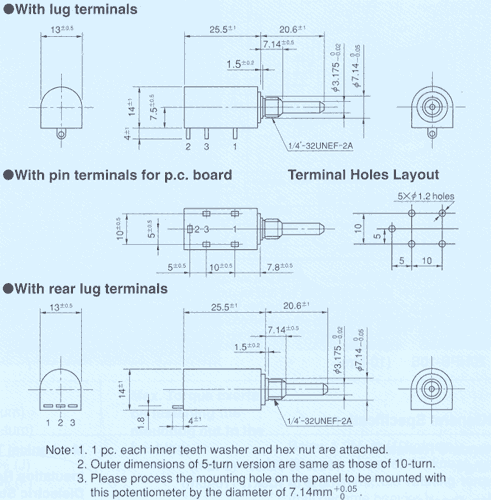

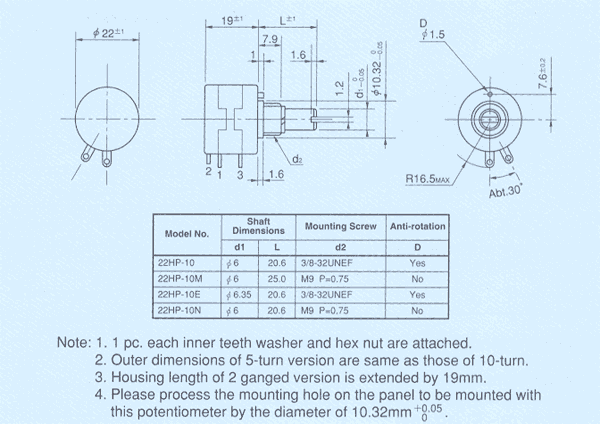

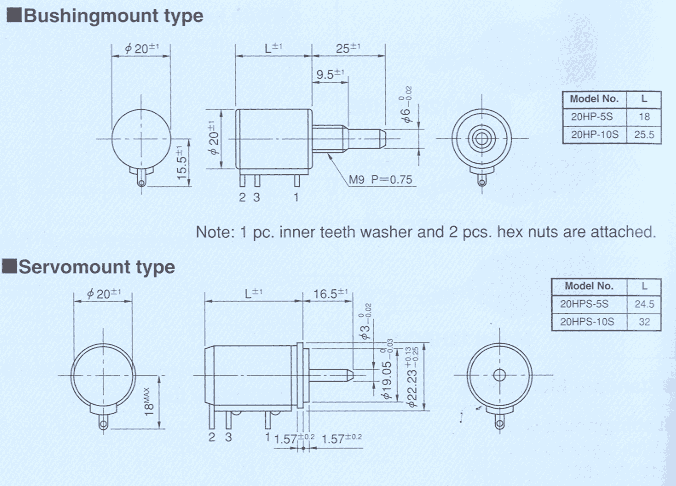

| Standard
Dimensions |
|
|
|
|
Potentiometers
- Multi Turn(2) |
| |
Model
Number |
25HP-10E |
46HD-10 |
|
|
|
|
Standard Model Nos. |
Bushingmount
type: |
20HP-5
(B~E) (5-turn) |
25HP-10
(B~E) (10-turn) |
Servomount
type: |
25HPS-5
(5-turn) |
25HPS-10
(10-turn) |
|
Bushingmount
type: |
46HD-3
(3-turn) |
46HD-5
(5-turn) |
46HD-10
(10-turn) |
46HD-15
(15-turn) |
46HD-20
(20-turn) |
Servomount
type: |
46HDS-3
(3-turn) |
46HDS-5
(5-turn) |
46HDS-10
(10-turn) |
46HDS-15
(15-turn) |
46HDS-20
(20-turn) |
|
| Standard
Resistance Range |
100
Ohm to 50k Ohm (5-turn) |
100
Ohm to 100k Ohm (10-turn) |
|
0.5
Ohm to 20k Ohm (3-turn) |
0.5
Ohm to 50k Ohm (5-turn) |
0.5
Ohm to 100k Ohm (10,15-turn) |
0.5
Ohm to 200k Ohm (20-turn) |
|
| Max.
Practical Resistance Value |
100k
Ohm (5-turn) |
200k
Ohm (10-turn) |
|
50k
- 100k Ohm (3-turn) |
100k
Ohm (5-turn) |
200k
Ohm (10,15-turn) |
500k
Ohm (20-turn) |
|
| Total
Resistance Tolerance |
Standard
Class ±3% (H) |
Precision
Class ±1% (F) |
|
Standard
Class ±3% (H) |
[
±5% (J) in case of below 1k Ohm] |
Precision
Class ±1% (F) |
[in
the pot. with a single-wire |
resistive
element, the precision |
class
should read ±2% (G)] |
|
| Independent
Linearity Tolerance |
| |
5-turn |
10-turn |
Standard
Class |
±0.3% |
±0.2% |
Precision
Class |
±0.2% |
±0.1% |
(Below
5k Ohm) |
(±0.25%) |
(±0.15%) |
|
| |
3, |
10,
15, |
| |
5-turn |
20-turn |
Standard
Class |
±0.4% |
±0.3% |
Precision
Class |
±0.2% |
±0.1% |
(Below
5k Ohm) |
(±0.25%) |
(±0.15%) |
|
| Power
Rating |
1.5W
(5-turn) |
2.0W
(10-turn) |
|
2.0W
(3-turn) |
2.5W
(5-turn) |
5.0W
(10-turn) |
7.5W
(15-turn) |
10.0W
(20-turn) |
|
| Noise |
Below
100 Ohm E.N.R. |
- |
| Electrical
Travel |
360°
*n ±5° (n: No. of turns) |
- |
| Mechanical
Travel |
360°
*n +10° (n: No. of turns) |
or |
360°
*n +0° (n: No. of turns) |
|
- |

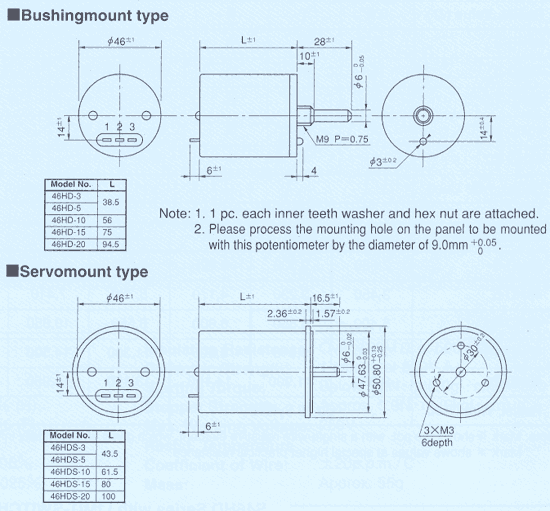

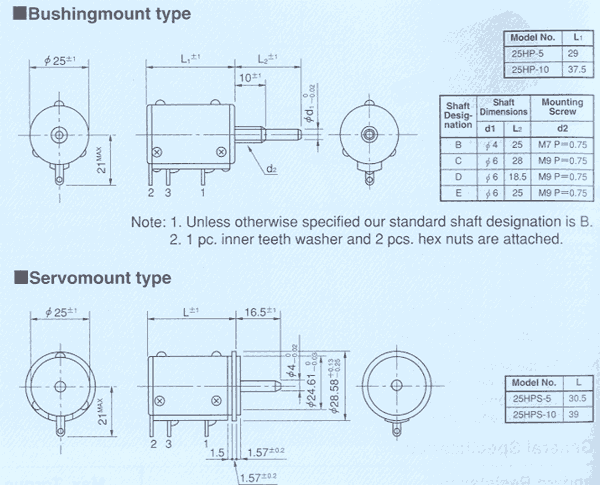

| Standard
Dimensions |
|
|
