Fork-Lift and Stud-Mounted Fuses
CBO/CCK/CCL Lift-Truck Fuses
CBO/CCK/CCL
PART NO.
A
B
C
CCK 1-15A
CCK 20-30A
CCK 35-60A
CCK 70-120A
CCK 140-200A
CCK 225-300A
CCL 30-60A
CCL 80-120A
2.810
3.060
3.629
4.129
4.362
4.612
3.060
3.38
2.204
2.454
3.454
3.579
3.829
2.454
2.70
.510
.510
.750
1.00
1.00
1.00
.510
.75
SPECIFICATIONS
Voltage ratings: CBO: 32 Volts DC
  CCK: 130 Volts DC (1-100A)
    72 Volts DC (120-200A)
  48 Volts DC (225-300A)
CCL: 125 Volts DC
Interrupting rating: CCK & CCL: 10,000A
Amperes range: 1 - 300 amperes

AMPERE RATINGS
CBO
10
25
40
70
100
Fast-Acting
12
30
50
75
125
15
35
60
80
150
20
CCK
1
20
50
90
160
Time-Delay
2
25
60
100
175
5
30
70
120
200
10
35
75
140
225

15
40
80
150
250

300
CCL
30
40
60
100
Time-Delay
35
50
80
120

Dimensions:

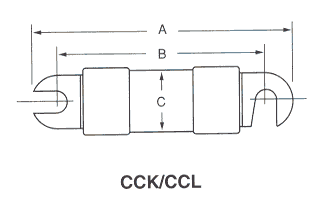

CCK/CCL
  CBO
