Fuse Blocks & Holders
L60030

L60030
SPECIFICATIONS
Voltage ratings: 600 Volt
Ampere ratings: 30 amps
Dielectric strength: 1200 volts minimum
Clip/terminals: Tin-plated copper alloy
Box lug: copper
Screw and captive pressure plate: Zinc-plated steel
Base: Thermoplastic. UL94VO flammability rating.
Approvals: Class CC: UL Listed (File No. E14721)
  Midget: UL Recognized (File No. E14721)
Class CC/Midget: CSA Certified (File No. LR7316)

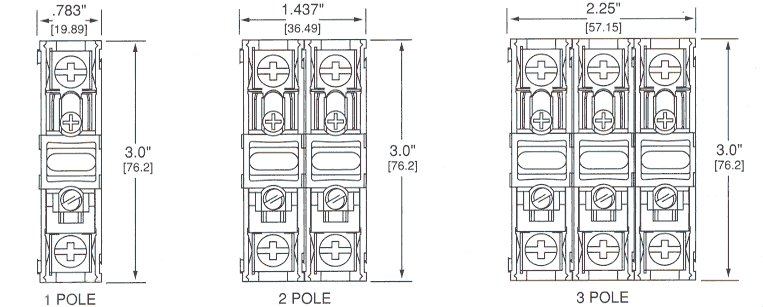

Dimensions: click here to see
