RT Type Series - Round Type (Plug Pin Type)

Plug		Receptacle
click here to see dimension		click here to see dimension
Dimension of each serie:

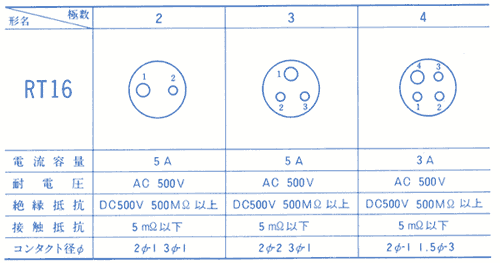

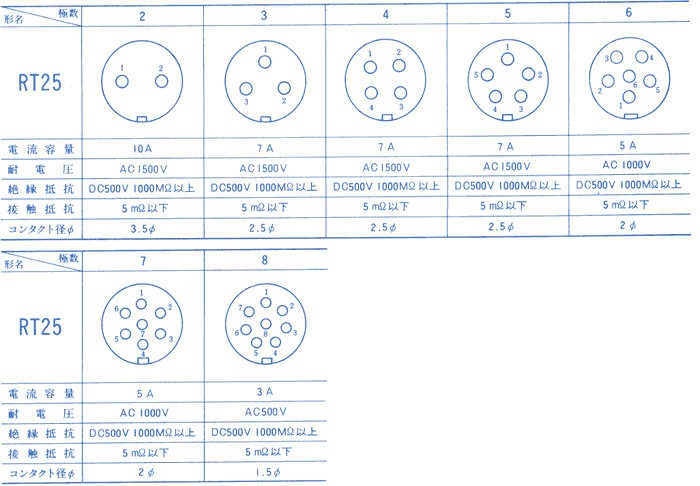

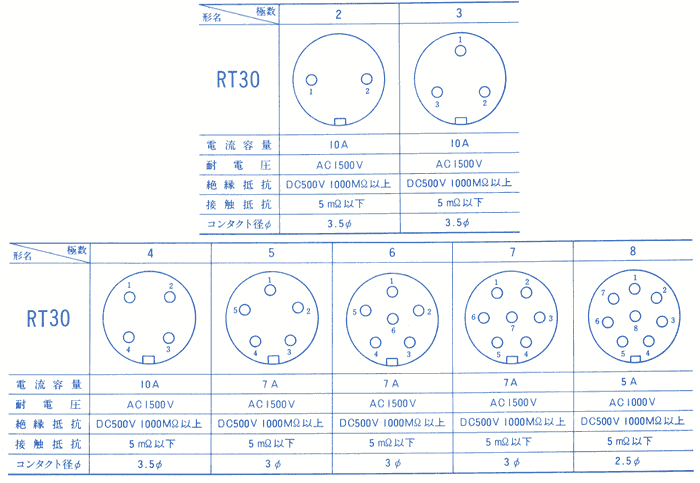

RT16 - RT25 - RT30
