Micro Fuse
HM Fuse - Normal blow


Cat. No.
Rated Current
Breaking Capacity
Typ. Resistance*
HM03
HM05
HM10
HM16
HM20
HM32
HM50
0.3A
0.5A
1A
1.6A
2A
3.2A
5A
AC/DC 250V 50A
0.79 Ohm
0.42 Ohm
0.17 Ohm
88m Ohm
67m Ohm
36m Ohm
21m Ohm

* at 10% max. rates current

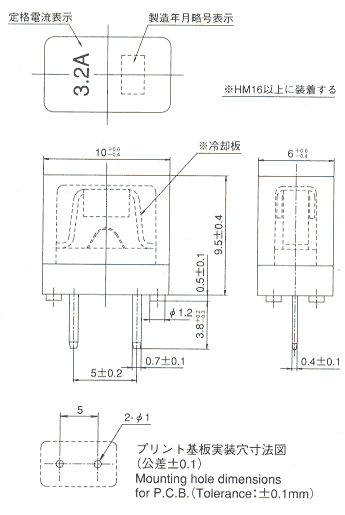

Click here to see HM Fuse's dimension
