Alarm Fuse
UP Fuse - Normal blow

Carrying Capacity
Clearing Time
110%
135% within 1 hour
200% within 2 minutes


Cat. No.
Rated Current
Breaking Capacity
Typ. Resistance*
UP75
UP100
UP150
UP200
UP250
UP300
7.5A
10A
15A
20A
25A
30A
AC 125V 10,000A
DC 125V 1,500A
AC 250V 2,500A
20m Ohm
12m Ohm
8m Ohm
6m Ohm
4m Ohm
3m Ohm
UP400
UP500
40A
50A
AC 125V 10,000A
DC 125V 1,000A
AC 250V 2,500A
3m Ohm
2m Ohm

* at 10% max. rates current

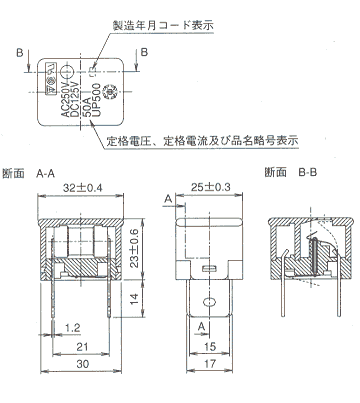

Click here to see UP Fuse's dimension
