Alarm Fuse

P4, PL4 Fuse - Normal blow

Cat. No.

Rated Current

Clearing Current*

Breaking Capacity

Typ. Resistance**

P[ ]03

P[ ]05

P[ ]13

P[ ]20

P[ ]30

P[ ]35

P[ ]50

0.3A

0.5A

1.3A

3.5A

0.7A

4.5A

5.3A

7.5A

11A

20A

30A

AC 220V 2,500A

DC 250V 1,500A

2 Ohm

1.3 Ohm

0.5 Ohm

62m Ohm

44m Ohm

34m Ohm

28m Ohm

18m Ohm

10m Ohm

8m Ohm

P[ ]75

P[ ]100

7.5A

10A

AC 125V 2,500A

DC 125V 1,500A

P[ ]150

15A

AC/DC 125V 1,000A

[ ] mean either "P4" or "PL4"

* Clearing Current within 1 minute

** at 10% max. rates current

P4, PL4 ; 200VA Max. AC 220V/DC 250V Max. 5A

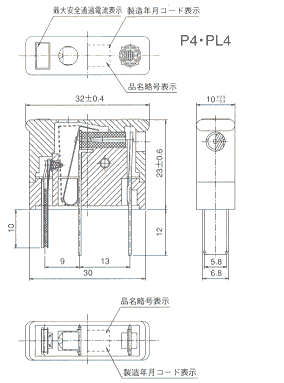

Click here to see P4, PL4 Fuse's dimension
