Alarm Fuse
HP Fuse - Normal blow

Carrying Capacity
Clearing Time
110%
135% within 1 hour
200% within 2 minutes


Cat. No.
Rated Current
Breaking Capacity
Typ. Resistance*
HP032
HP05
HP10
HP16
HP20
HP32
HP50
0.32A
0.5A
1A
1.6A
2A
3.2A
5A
AC/DC 250V 1,500A
AC 125V 10,000A
3.16 Ohm
1.86 Ohm
0.257 Ohm
0.110 Ohm
86m Ohm
47m Ohm
22m Ohm
18m Ohm

HP63

6.3A

AC/DC 250V 200A
AC 125V 10,000A

* at 10% max. rates current

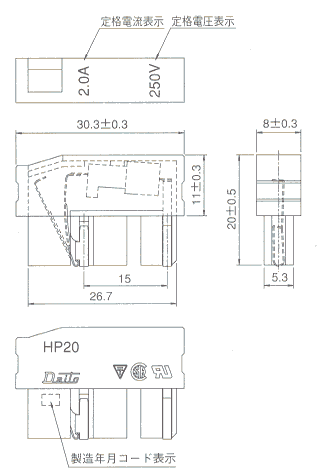

Click here to see HP Fuse's dimension
